PFS POUCH FILLING SYSTEM

INTO THESE FORMATS

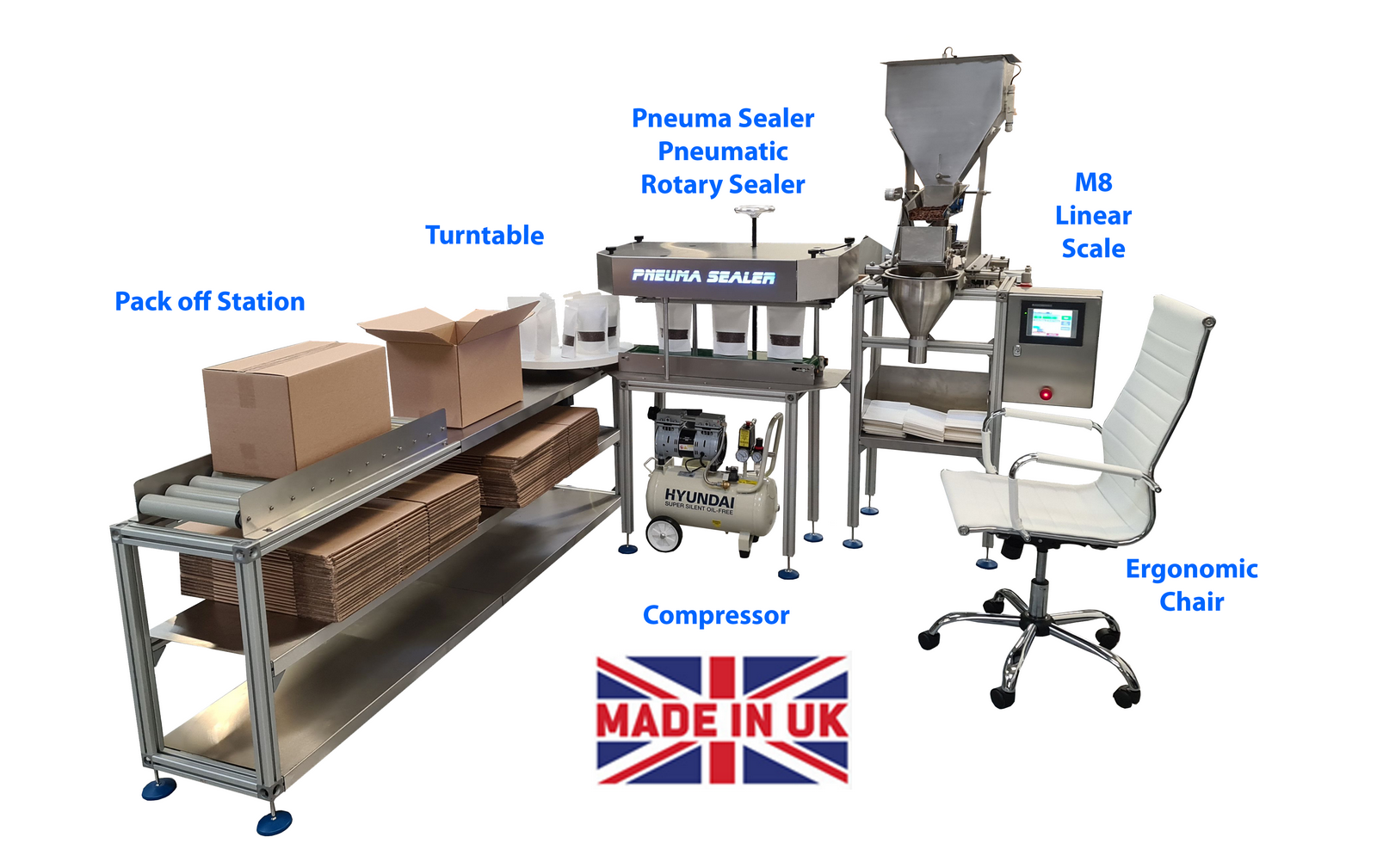

System Includes

M8 Linear Scale

 Speed:                          Up To 15 PPM
•    Weight Range:             Up to 2.5 KG*
•    Accuracy Range:        0.0g to 20g*
•    Construction:                304 S.S.
•    30 Second tear down for cleaning
•    200 Liter Stainless Steel Bulk Hopper:
        Adjustable door to control product flow
•    Vibratory Feeder:
        Heavy-duty Drive
        Air Gate for Fine Feed Control
•    2.5 Liter Scale Hoppers:
        Air Operated Door
•    Stainless Steel Funnel
•    7” Colour Touch Screen
•    PLC Control with 50 Recipes
•    Precision Load Cell (20 BIT A/D)
•    Level Control
•    Auto Dump Feature
•    Pouch Shelf

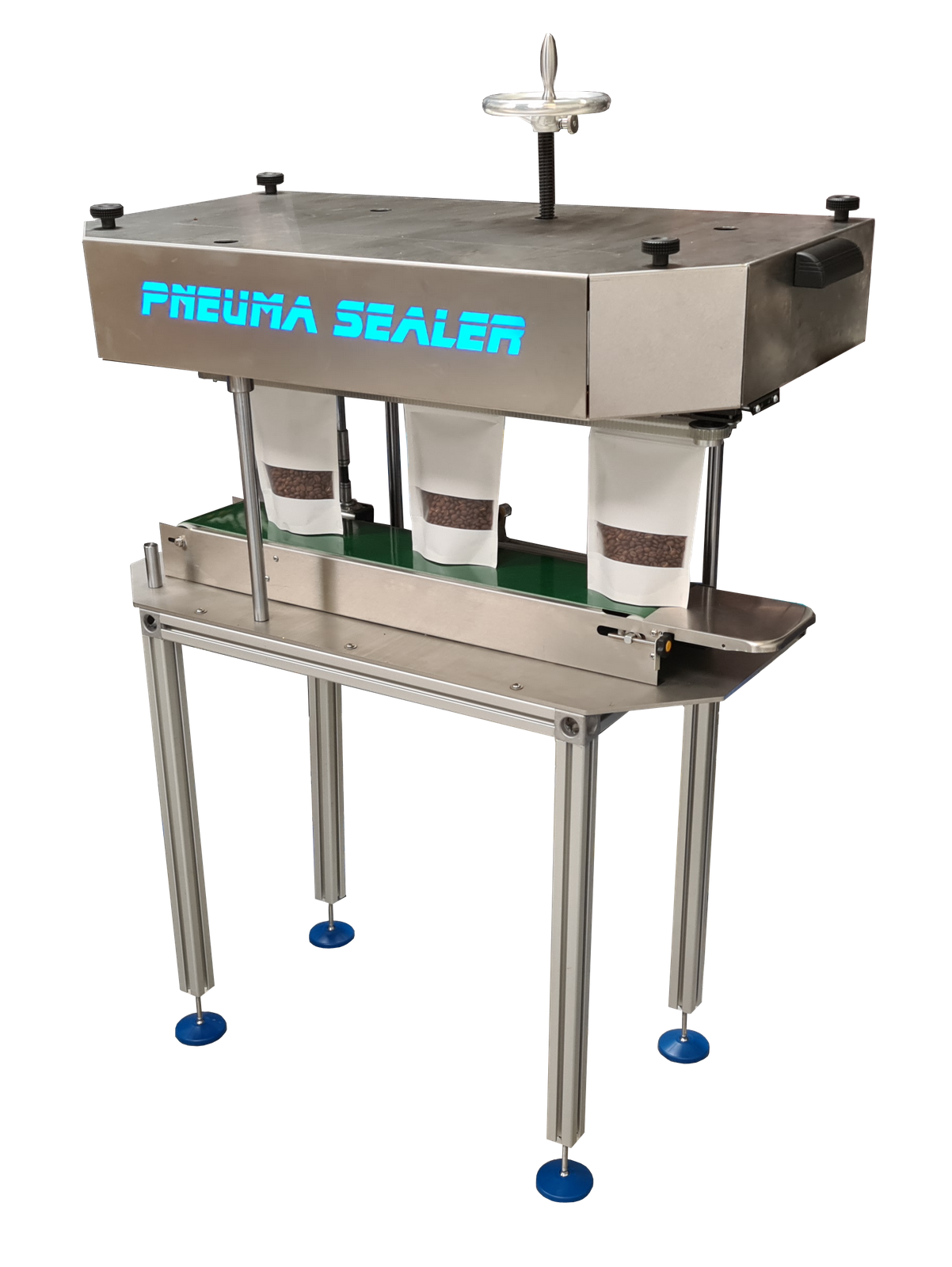

Pneuma Sealer

•    Pneumatically Controlled Seal Jaws
•    Digitally Controlled
•    Up to 40mm x 320mm Sealing face
•    Photo eye Detection
•    Adjustable Height

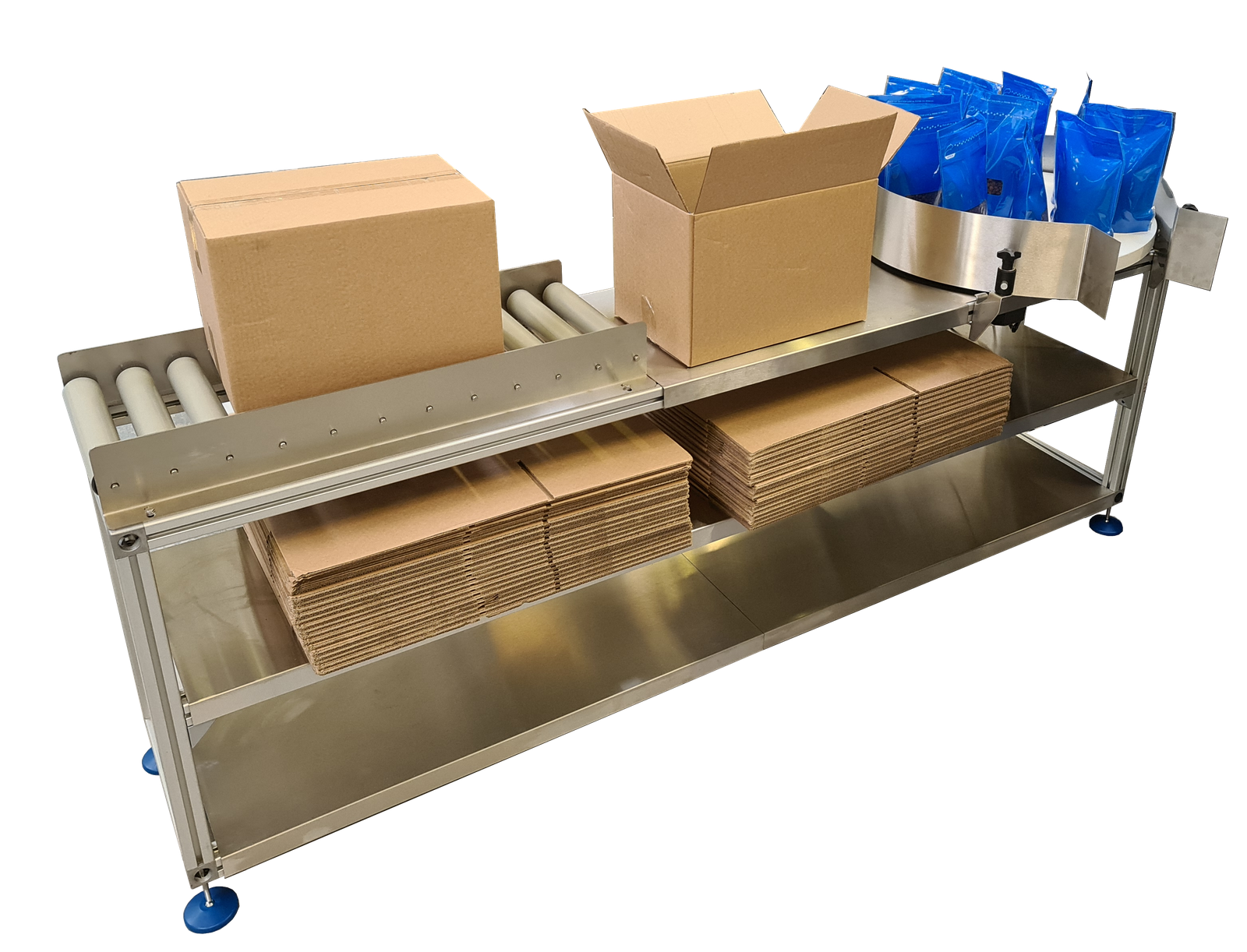

Pack Off Station & Turntable

•    600mm Dia Direct Drive Turntable
•    4 meters of Stainless Shelving
•    Quality Control Weigh Scale
•    Box Pack Area
•    Box Roller Section

Super Silent Compressor

•    Super Silent Compressor
•    Blow Off Gun
•    500g Calibration Weight
•    QR CODE with How to Videos & Manuals
•    1 Year Warranty

SPECIFICATIONS

POUCH SIZES

 •    230 Volt 13 amp Single Phase


Width: MIN 65mm MAX 320mm
Height: MIN 100mm MAX 350mm

OPTIONS

GAS FLUSH
BAG OPENING ASSIST

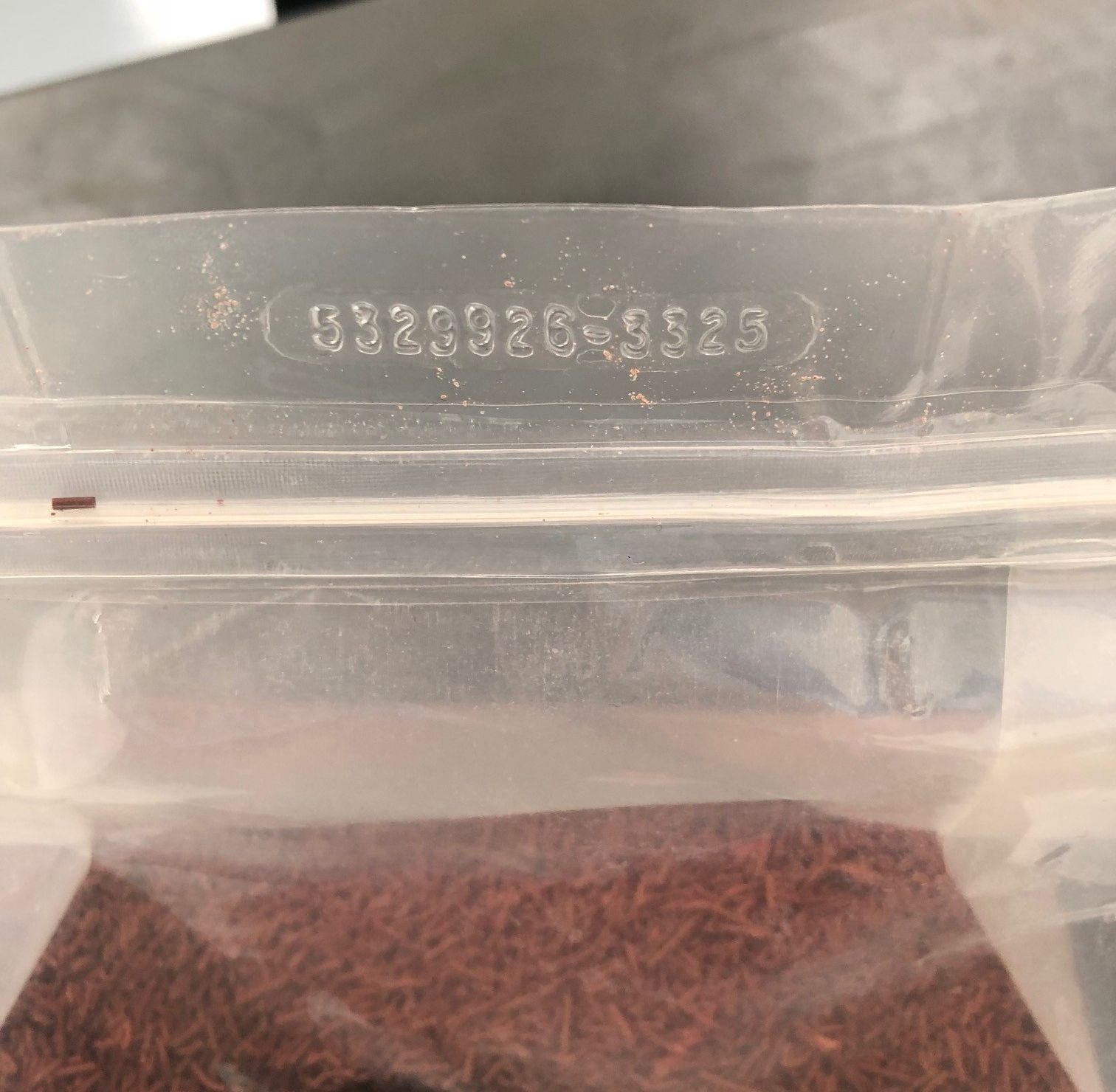

EMBOSS
THERMAL INK JET
